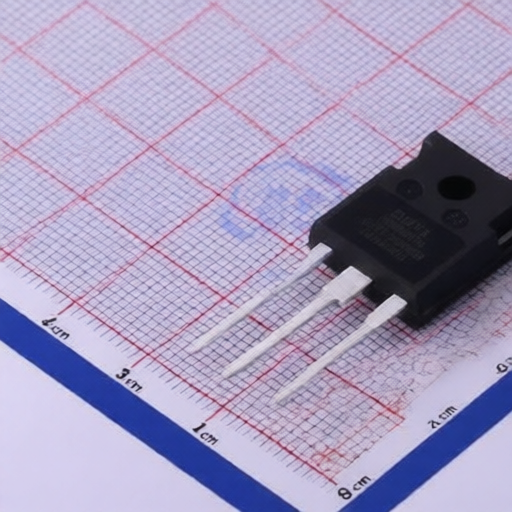

Littelfuse/IXYS IXGH6N170A
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXGH6N170A
Package:
TO-247-3
Customer #:
Key Attributes:
IGBT 1.7kV 6A TO-247-3
Description:
IGBT 1.7kV 6A 75W Through Hole TO-247-3
Datasheet:
Littelfuse/IXYS IXGH6N170A
Products Specifications
Manufacturer:
Package:
TO-247-3
Td(off):
220ns
Pd - Power Dissipation:
75W
Td(on):
46ns
Collector-Emitter Breakdown Voltage (Vces):
1.7kV
Reverse Transfer Capacitance (Cres):
7pF
Input Capacitance(Cies):
390pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
7V@15V,3A
Gate Charge(Qg):
18.5nC
Operating Temperature:
-55℃~+150℃@(Tj)
Output Capacitance(Coes):
20pF
Switching Energy(Eoff):
180uJ
Turn-On Energy (Eon):
590uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
