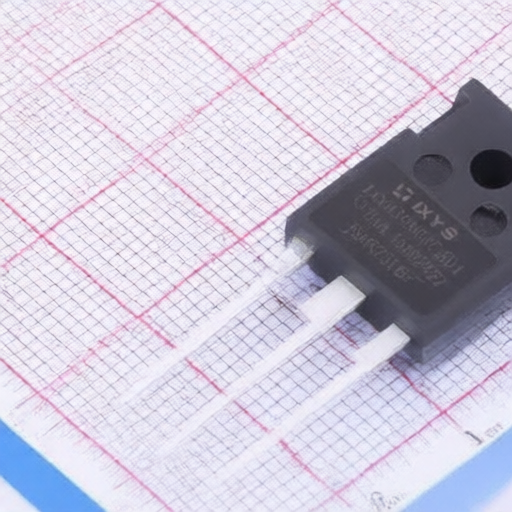

Littelfuse/IXYS IXXH30N60C3D1
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXXH30N60C3D1
Package:
TO-247AD
Customer #:
Key Attributes:
600V IGBT for 20 - 60 kHz Switching
Description:
270W 600V TO-247AD Single IGBTs RoHS
Datasheet:
Littelfuse/IXYS IXXH30N60C3D1
Products Specifications
Manufacturer:
Package:
TO-247AD
Td(off):
77ns
Pd - Power Dissipation:
270W
Td(on):
23ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
25pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6V@250uA
Gate Charge(Qg):
37nC
Output Capacitance(Coes):
133pF
Reverse Recovery Time(trr):
100ns
Switching Energy(Eoff):
450uJ
Turn-On Energy (Eon):
500uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
