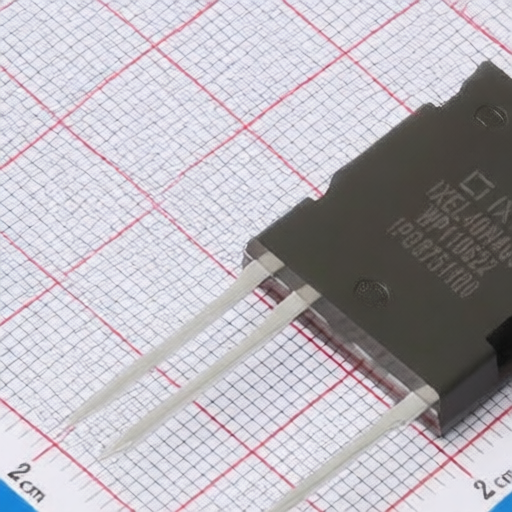

Littelfuse/IXYS IXEL40N400
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXEL40N400
Package:
ISOPLUSi5-Pak
Customer #:
Key Attributes:
IGBT 4kV 90A ISOPLUSi5-Pak
Description:
IGBT 4kV 90A 380W Through Hole ISOPLUSi5-Pak
Datasheet:
Littelfuse/IXYS IXEL40N400
Products Specifications
Manufacturer:
Package:
ISOPLUSi5-Pak
Td(off):
630ns
Pd - Power Dissipation:
380W
Td(on):
160ns
Collector-Emitter Breakdown Voltage (Vces):
4kV
Reverse Transfer Capacitance (Cres):
120pF
Input Capacitance(Cies):
6.04nF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.5V@10mA
Gate Charge(Qg):
275nC
Operating Temperature:
-40℃~+150℃@(Tj)
Output Capacitance(Coes):
278pF
Switching Energy(Eoff):
165mJ
Turn-On Energy (Eon):
55mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
