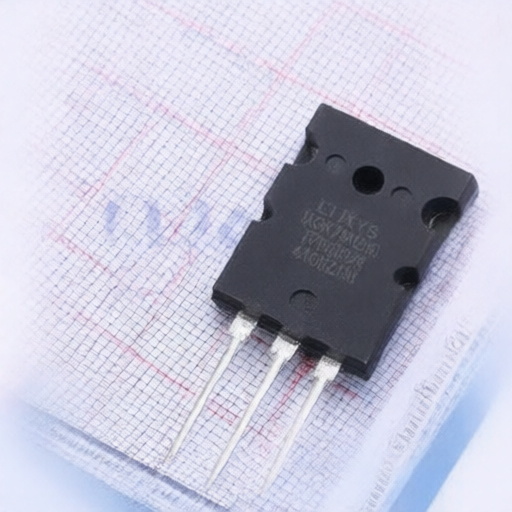

Littelfuse/IXYS IXGK75N250
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXGK75N250
Package:
TO-264
Customer #:
Key Attributes:
IGBT 2.5kV 170A TO-264
Description:
IGBT NPT (Non-Punch Through) 2.5kV 170A 780W Through Hole TO-264
Datasheet:
Littelfuse/IXYS IXGK75N250
Products Specifications
Manufacturer:
Package:
TO-264
Td(off):
270ns
Pd - Power Dissipation:
780W
Td(on):
55ns
Collector-Emitter Breakdown Voltage (Vces):
2.5kV
Reverse Transfer Capacitance (Cres):
110pF
IGBT Type:
NPT (Non-Punch Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.6V@15V,150A
Operating Temperature:
-55℃~+150℃@(Tj)
Gate Charge(Qg):
410nC
Output Capacitance(Coes):
345pF
Switching Energy(Eoff):
-
Turn-On Energy (Eon):
-
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 25 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
