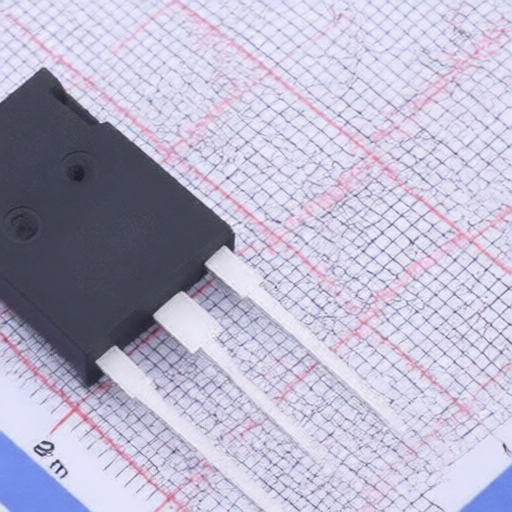

Littelfuse/IXYS IXGH72N60A3
Manufacturer:
Littelfuse/IXYS
Mfr. Part #:
IXGH72N60A3
Package:
TO-247
Customer #:
Key Attributes:
600V 72A Ultra Low Vsat PT IGBT up to 5kHz switching
Description:
540W 600V PT (Punch-Through) TO-247 Single IGBTs RoHS
Datasheet:
Littelfuse/IXYS IXGH72N60A3
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
540W
Td(off):
320ns
Td(on):
31ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
80pF
IGBT Type:
PT (Punch-Through)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3V@250uA
Gate Charge(Qg):
230nC
Operating Temperature:
-55℃~+150℃
Output Capacitance(Coes):
360pF
Switching Energy(Eoff):
3.5mJ
Turn-On Energy (Eon):
1.38mJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
