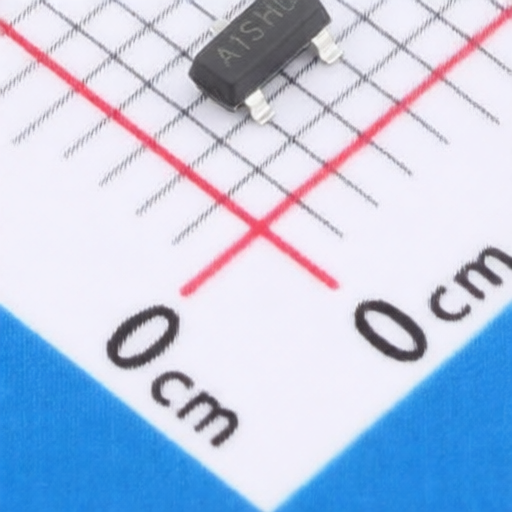

JTD JTD2301B
Manufacturer:
JTD
Asian Brands
Mfr. Part #:
JTD2301B
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 20V 2.8A SOT-23
Description:
20V 2.8A 650mV 400mW SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
JTD JTD2301B
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.8A
RDS(on):
72mΩ@4.5V;99mΩ@2.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
650mV
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
55pF
Output Capacitance(Coss):
75pF
Input Capacitance(Ciss):
405pF
Pd - Power Dissipation:
400mW
Gate Charge(Qg):
5.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
