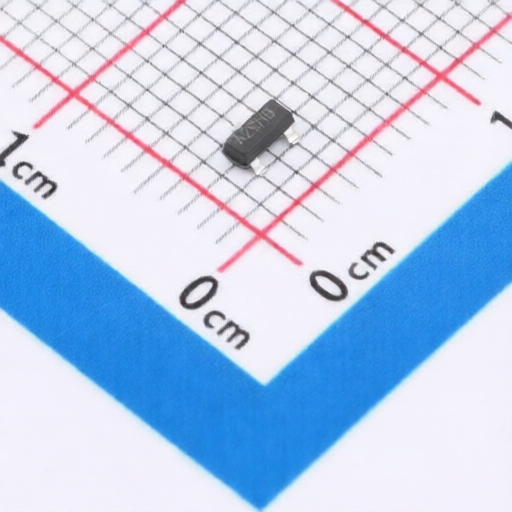

JTD JTD2302B
Manufacturer:
JTD
Asian Brands
Mfr. Part #:
JTD2302B
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 2.8A SOT-23
Description:
20V 2.8A 27mΩ@4.5V 650mV SOT-23 Single FETs, MOSFETs RoHS
Datasheet:
JTD JTD2302B
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
2.8A
RDS(on):
27mΩ@4.5V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
650mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
80pF
Output Capacitance(Coss):
120pF
Input Capacitance(Ciss):
300pF
Gate Charge(Qg):
4nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 50 |
| Multiple | 50 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
