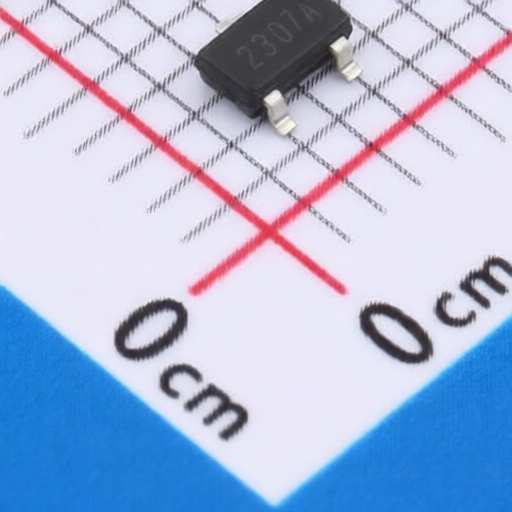

JTD JTD2307A
Manufacturer:
JTD
Asian Brands
Mfr. Part #:
JTD2307A
Package:
SOT-23-3L
Customer #:
Key Attributes:
MOSFET P-CH 20V 10A SOT-23-3L
Description:
P-Channel 20V 10A 1.2W Surface Mount SOT-23-3L
Datasheet:
JTD JTD2307A
Products Specifications
Manufacturer:
Package:
SOT-23-3L
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
10A
RDS(on):
16.8mΩ@4.5V,5A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
680mV
Reverse Transfer Capacitance (Crss@Vds):
280pF
Number:
1 P-Channel
Pd - Power Dissipation:
1.2W
Input Capacitance(Ciss):
1.28nF
Gate Charge(Qg):
14nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
