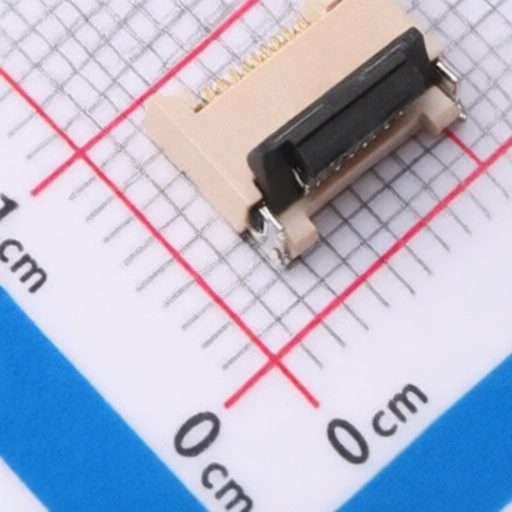

JST 10FHH-SM1-GAN-TF(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
10FHH-SM1-GAN-TF(LF)(SN)
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
0.5 mm pitch/Wire to Board connector/For FPC, ZIF type
Description:
Front insertion and back flip type -25℃~+85℃ 10P 0.5mm 500mA 50V Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle SMD,P=0.5mm,Surface Mount,Right Angle FFC, FPC (Flat Flexible) Connector Assemblies RoHS
Datasheet:
JST 10FHH-SM1-GAN-TF(LF)(SN)
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm,Surface Mount,Right Angle
Locking Feature:
Front insertion and back flip type
Operating Temperature:
-25℃~+85℃
Number of Contacts:
10P
Pitch:
0.5mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Plating:
Tin
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
