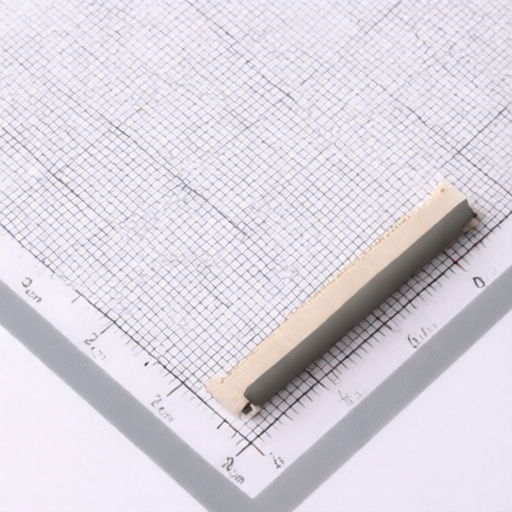

JST 60FHH-SM1-GAN-TF(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
60FHH-SM1-GAN-TF(LF)(SN)
Package:
SMD,P=0.5mm
Customer #:
Key Attributes:
0.5mm pitch/Connectors for FPC
Description:
Hinged Lid -25℃~+85℃ 60P 0.5mm 500mA 50V Double-Sided Contacts, Top and Bottom Entry Surface Mount, Right Angle SMD,P=0.5mm FFC, FPC (Flat Flexible) Connector Assemblies RoHS
Datasheet:
JST 60FHH-SM1-GAN-TF(LF)(SN)
Products Specifications
Manufacturer:
Package:
SMD,P=0.5mm
Locking Feature:
Hinged Lid
Operating Temperature:
-25℃~+85℃
Number of Contacts:
60P
Pitch:
0.5mm
Current Rating:
500mA
Voltage Rating (Max):
50V
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Surface Mount, Right Angle
FFC, FCB Thickness:
0.3mm
Contact Material:
Copper alloy
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JST
2697 Products
JST
- JST has been dedicated to excellence in connection technology as a global manufacturer of high quality (ISO-9001/QS-9000) sub-miniature connectors since 1957. Our product offering consists of Wire-to-Wire, Wire-to-Board, Board-to-Board, Flex/Flat Cable, memory connectors, solderless terminals, chain terminals, shunts and application tooling. JST's Engineering Centers offer design and development, prototype and pre-production manufacturing, and electrical/environmental testing capabilities. Production flexibility, innovative product development, production engineering, quality assurance, value added solutions and responsiveness to customer needs are what have fueled our growth and resulted in rewarding partnerships with our valued customers.
