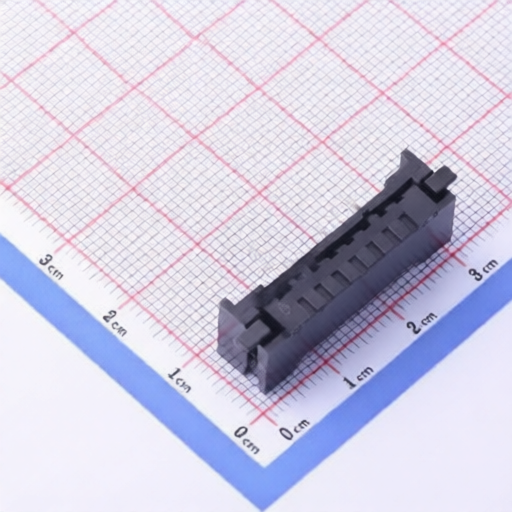

JST 08FDZ-ST(S)(LF)(SN)
Manufacturer:
JST
Mfr. Part #:
08FDZ-ST(S)(LF)(SN)
Package:
Through Hole,Right Angle,P=2.54mm
Customer #:
Key Attributes:
CONN FFC FPC 8POS 2.54mm TOP AND BOTTOM CNT TH R/A
Description:
FFC/FPC Connector 8 Position 2.54mm Pitch Double-Sided Contacts, Top and Bottom Entry Through Hole, Right Angle -40℃~+85℃
Datasheet:
JST 08FDZ-ST(S)(LF)(SN)
Products Specifications
Manufacturer:
Package:
Through Hole,Right Angle,P=2.54mm
Operating Temperature:
-40℃~+85℃
Locking Feature:
Slide Lock
Number of Contacts:
8P
Pitch:
2.54mm
Contact Type:
Double-Sided Contacts, Top and Bottom Entry
Mounting Type:
Right Angle
FFC, FCB Thickness:
-
Contact Plating:
Tin
Contact Material:
Phosphor Bronze
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | EAR99 |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
