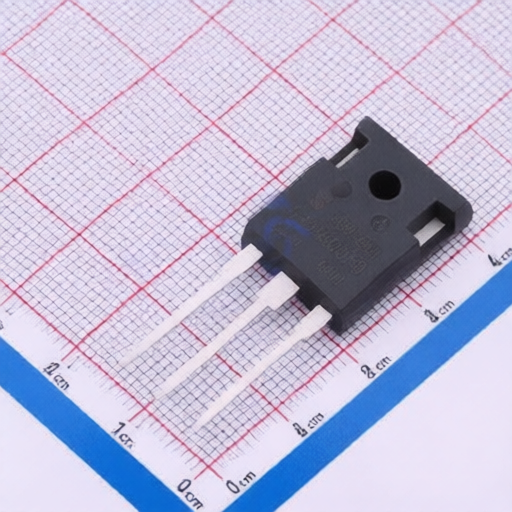

JSMSEMI S-FGH40N60UFDTU
Manufacturer:
JSMSEMI
Asian Brands
Mfr. Part #:
S-FGH40N60UFDTU
Package:
TO-247-3L
Customer #:
Key Attributes:
IGBT 650V 40A TO-247-3L
Description:
IGBT 650V 40A Through Hole TO-247-3L
Datasheet:
JSMSEMI S-FGH40N60UFDTU
Products Specifications
Manufacturer:
Package:
TO-247-3L
Pd - Power Dissipation:
-
Td(off):
104ns
Td(on):
20ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
67pF
IGBT Type:
-
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6.3V@1mA
Gate Charge(Qg):
146nC@40A,15V
Reverse Recovery Time(trr):
188ns
Switching Energy(Eoff):
930uJ
Turn-On Energy (Eon):
950uJ
Input Capacitance(Cies):
2.54nF@25V
Pulsed Current- Forward(Ifm):
60A
Output Capacitance(Coes):
126pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
