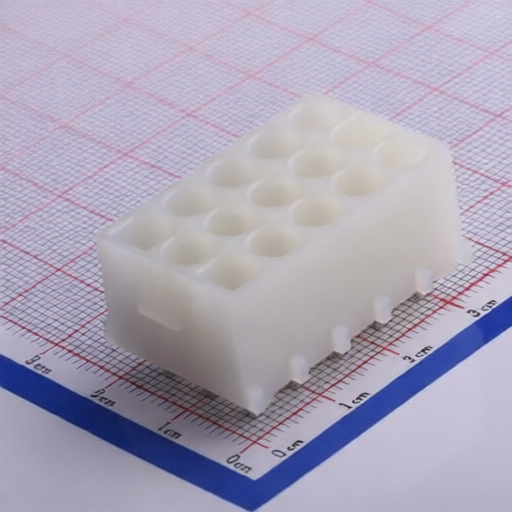

Joint Tech Elec C6350WV-3X05PFV2

Joint Tech Elec C6350WV-3X05PFV2

Name: Joint Tech Elec C6350WV-3X05PFV2
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: C6350WV-3X05PFV2

Package: Through Hole,P=6.35mm

Customer #:

Key Attributes: CONN HEADER TH 15POS 6.35mm

Description: Connector Header 15 position 6.35mm Pitch 15A Through Hole -25℃~+85℃

Datasheet: Joint Tech Elec C6350WV-3X05PFV2

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,P=6.35mm

Y-Width of Bottom Edge on Board:

20.32mm

Pins Structure:

3x5P

Reference Series:

Contact Plating:

Tin

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-2

Pitch:

6.35mm

Voltage Rating (Max):

600V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

33.02mm

Z-Height of the Board:

14.73mm

Mounting Type:

Through Hole

Row Spacing:

6.35mm

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	100
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11
