Joint Tech Elec C4255WV-2X12P

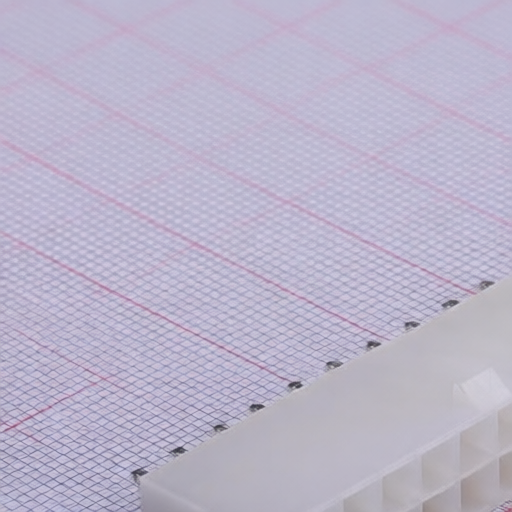

Joint Tech Elec C4255WV-2X12P

Name: Joint Tech Elec C4255WV-2X12P
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: C4255WV-2X12P

Package: Through Hole,P=4.2mm

Customer #:

Key Attributes: CONN HEADER TH 24POS 4.2mm

Description: Connector Header 24 position 4.2mm Pitch 9A Through Hole -25℃~+85℃

Datasheet: Joint Tech Elec C4255WV-2X12P

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,P=4.2mm

Y-Width of Bottom Edge on Board:

10mm

Pins Structure:

2x12P

Reference Series:

Contact Plating:

Tin

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-2

Pitch:

4.2mm

Voltage Rating (Max):

600V

Number of PINs Per Row:

Number of Rows:

Z-Height of the Board:

12.8mm

Mounting Type:

Through Hole

Row Spacing:

4.2mm

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	45
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
