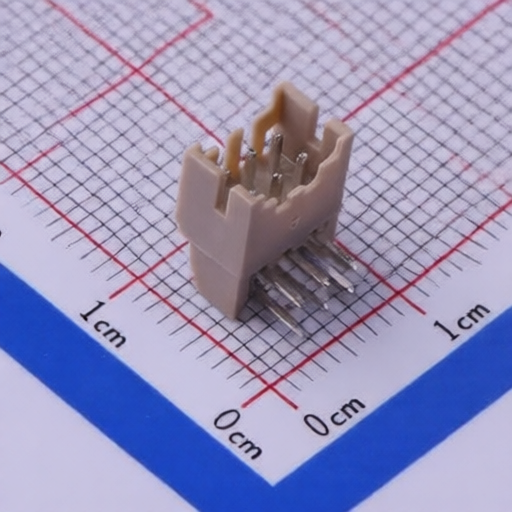

Joint Tech Elec A2004WR-2X03P

Joint Tech Elec A2004WR-2X03P

Name: Joint Tech Elec A2004WR-2X03P
Brand: Joint Tech Elec

Manufacturer: Joint Tech Elec Asian Brands

Mfr. Part #: A2004WR-2X03P

Package: Through Hole,Right Angle,P=2mm

Customer #:

Key Attributes: CONN HEADER TH R/A 6POS 2mm

Description: Connector Header 6 position 2mm Pitch 3A Right Angle -25℃~+85℃

Datasheet: Joint Tech Elec A2004WR-2X03P

Products Specifications

Category:

Connectors, Interconnects/Rectangular Connectors/Headers, Male Pins

Manufacturer:

Joint Tech Elec

Package:

Through Hole,Right Angle,P=2mm

Y-Width of Bottom Edge on Board:

9.5mm

Reference Series:

Pins Structure:

2x3P

Contact Plating:

Tin

Contact Material:

Brass;PA66

Operating Temperature:

-25℃~+85℃

Flame Retardant Rating:

UL94V-0

Pitch:

2mm

Voltage Rating (Max):

250V

Number of PINs Per Row:

Number of Rows:

X-Length of Bottom Edge on Board (Spacing Line):

8mm

Z-Height of the Board:

5mm

Row Spacing:

2mm

Mounting Type:

Right Angle

Additional Information

Type	Details
Minimum	17
Multiple	17
Standard Packaging	646
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	EAR99
CNHTS	8536901100
USHTS	8536908585
TARIC	8536901000
CAHTS	8536900090
BRHTS	85369010
INHTS	85369010
MXHTS	8536.90.11

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Joint Tech Elec

1417 Products

Asian Brand

HR (Joint Tech Elec) was founded in 1984 in Taiwan, China, by Chairman Jinyi Xie. In 1998, the company expanded and established additional factories and production lines in Dongguan, Guangdong. The company primarily produces precision connectors and terminals.
