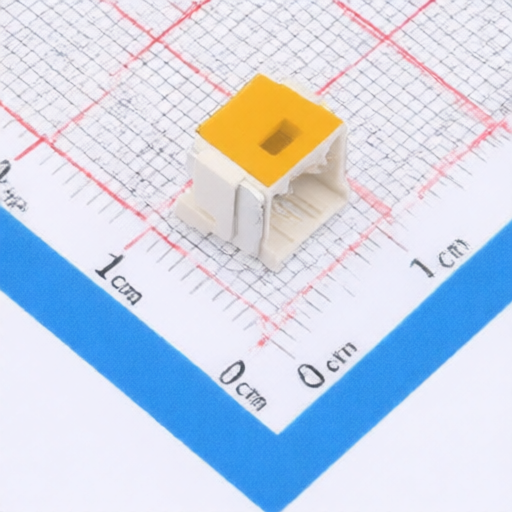

jkun A1506AWR-03-F4MB1-R-M
Manufacturer:
jkun
Asian Brands
Mfr. Part #:
A1506AWR-03-F4MB1-R-M
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Customer #:
Key Attributes:
CONN HEADER SMD R/A 3POS 1.5mm
Description:
1x3P Tin 1.5mm 100V 3 1 Surface Mount, Right Angle -40℃~+125℃ SMD,P=1.5mm,Surface Mount,Right Angle Headers, Male Pins RoHS
Datasheet:
jkun A1506AWR-03-F4MB1-R-M
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm,Surface Mount,Right Angle
Y-Width of Bottom Edge on Board:
6.35mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x3P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Pitch:
1.5mm
Voltage Rating (Max):
100V
Number of PINs Per Row:
3
Number of Rows:
1
Mounting Type:
Surface Mount, Right Angle
Operating Temperature:
-40℃~+125℃
Z-Height of the Board:
7.25mm
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
