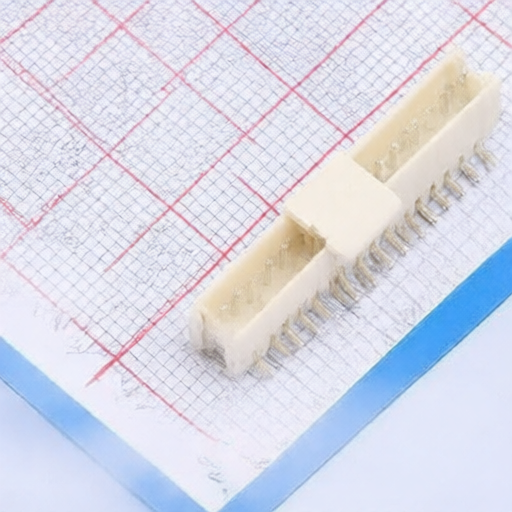

jkun A1501AWV-12-F2MA-R-X
Manufacturer:
jkun
Asian Brands
Mfr. Part #:
A1501AWV-12-F2MA-R-X
Package:
SMD,P=1.5mm
Customer #:
Key Attributes:
CONN HEADER SMD 12POS 1.5mm
Description:
1x12P Tin 1.5mm 125V 12 1 -25℃~+105℃ Surface Mount,Vertical SMD,P=1.5mm Headers, Male Pins RoHS
Datasheet:
jkun A1501AWV-12-F2MA-R-X
Products Specifications
Manufacturer:
Package:
SMD,P=1.5mm
Y-Width of Bottom Edge on Board:
5.55mm
Flame Retardant Rating:
UL94V-0
Pins Structure:
1x12P
Contact Plating:
Tin
Contact Material:
Phosphor Bronze;LCP
Pitch:
1.5mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
12
Number of Rows:
1
Z-Height of the Board:
6.6mm
Operating Temperature:
-25℃~+105℃
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
