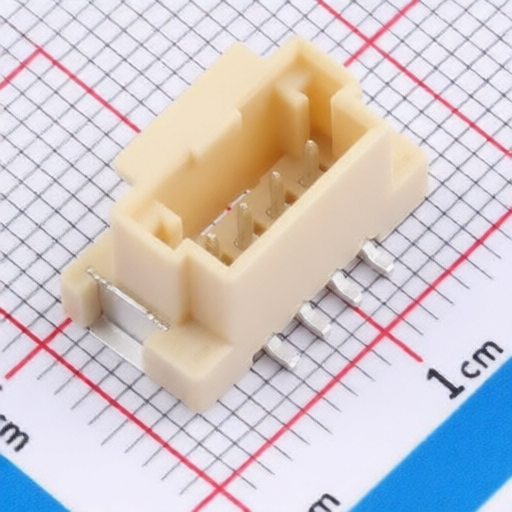

jkun QA2009AWV-04-D1CB1-R
Manufacturer:
jkun
Asian Brands
Mfr. Part #:
QA2009AWV-04-D1CB1-R
Package:
SMD,P=2mm
Customer #:
Key Attributes:
CONN HEADER SMD 4POS 2mm
Description:
Connector Header 4 position 2mm Pitch 3A Surface Mount,Vertical -40℃~+125℃
Datasheet:
jkun QA2009AWV-04-D1CB1-R
Products Specifications
Manufacturer:
Package:
SMD,P=2mm
Y-Width of Bottom Edge on Board:
9.15mm
Reference Series:
-
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
PA9T;Phosphor Bronze
Operating Temperature:
-40℃~+125℃
Flame Retardant Rating:
UL94V-0
Supplementary Features:
Auxiliary Solder Pin
Pitch:
2mm
Voltage Rating (Max):
125V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
12mm
Z-Height of the Board:
7.8mm
Mounting Type:
Surface Mount,Vertical
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
