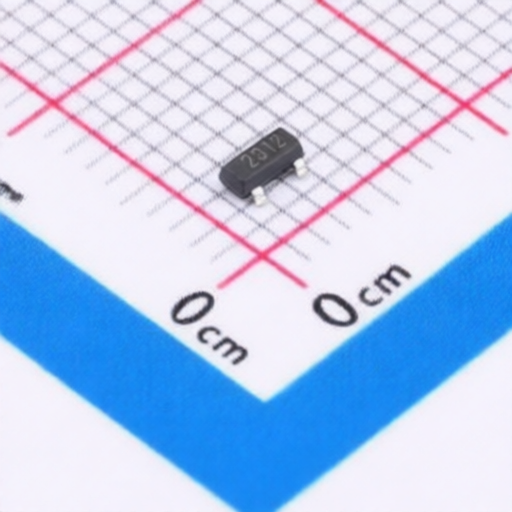

JingYang JY2312X
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
JY2312X
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET N-CH 20V 6A SOT-23
Description:
N-Channel 20V 6A 1.3W Surface Mount SOT-23
Datasheet:
JingYang JY2312X
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
6A
RDS(on):
34mΩ@2.5V,4A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
500mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
140pF@10V
Number:
1 N-channel
Output Capacitance(Coss):
300pF
Pd - Power Dissipation:
1.3W
Input Capacitance(Ciss):
500pF@10V
Gate Charge(Qg):
10nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 10 |
| Multiple | 10 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JingYang
349 Products
Shenzhen Jingyang Electronics Co., Ltd.
(hereafter referred to as "JYELECTRONICS" or "Shenzhen JingYang") was established in 2006 and has specialized in IC design, production, sales, and system integration for many years. The company operates several wholly-owned subsidiaries and holding companies and holds nearly 100 valid patents and other intellectual property rights. It is recognized as a leading "circuit and system protection expert" in the industry. JYELECTRONICS offers a wide range of products, including ESD devices, TVS components, LED display driver chips, MOSFETs, diodes, triodes, power management chips, interface chips, and more. These products find applications in various areas such as computers, televisions, network communications, smart wearables, security monitoring, home appliances, industrial control, new energy vehicles, and power tools. JYELECTRONICS is committed to the business philosophy of "customer first, quality first, and integrity-based." JYELECTRONICS strives
