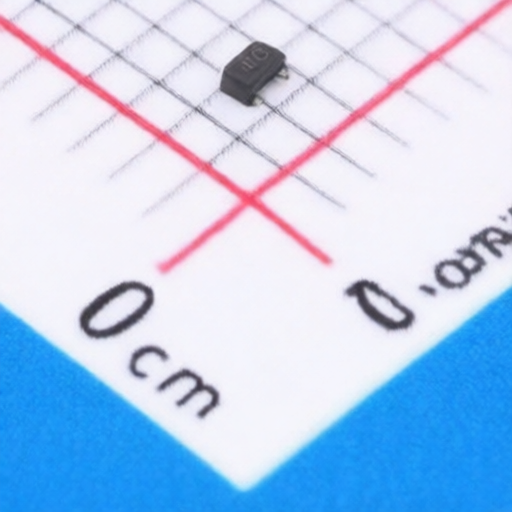

JingYang TNM01K20CX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TNM01K20CX
Package:
SOT-723
Customer #:
Key Attributes:
MOSFET N-CH 20V 900mA SOT-723
Description:
N-Channel 20V 900mA 250mW Surface Mount SOT-723
Datasheet:
JingYang TNM01K20CX
Products Specifications
Manufacturer:
Package:
SOT-723
Pd - Power Dissipation:
250mW
Configuration:
-
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
900mA
RDS(on):
250mΩ@4.5V;300mΩ@2.5V;400mΩ@1.8V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
6pF
Number:
1 N-channel
Output Capacitance(Coss):
9pF
Input Capacitance(Ciss):
43pF
Gate Charge(Qg):
2nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JingYang
349 Products
Shenzhen Jingyang Electronics Co., Ltd.
(hereafter referred to as "JYELECTRONICS" or "Shenzhen JingYang") was established in 2006 and has specialized in IC design, production, sales, and system integration for many years. The company operates several wholly-owned subsidiaries and holding companies and holds nearly 100 valid patents and other intellectual property rights. It is recognized as a leading "circuit and system protection expert" in the industry. JYELECTRONICS offers a wide range of products, including ESD devices, TVS components, LED display driver chips, MOSFETs, diodes, triodes, power management chips, interface chips, and more. These products find applications in various areas such as computers, televisions, network communications, smart wearables, security monitoring, home appliances, industrial control, new energy vehicles, and power tools. JYELECTRONICS is committed to the business philosophy of "customer first, quality first, and integrity-based." JYELECTRONICS strives
