JingYang TNM3K50FX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TNM3K50FX
Package:
SOT-523
Customer #:
Key Attributes:
MOSFET N-CH 50V 200mA SOT-523
Description:
N-Channel 50V 200mA 160mW Surface Mount SOT-523
Datasheet:
JingYang TNM3K50FX
Products Specifications
Manufacturer:
Package:
SOT-523
Configuration:
-
Drain to Source Voltage:
50V
Current - Continuous Drain(Id):
200mA
RDS(on):
4Ω@4.5V,200mA
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
1.5V
Type:
N-Channel

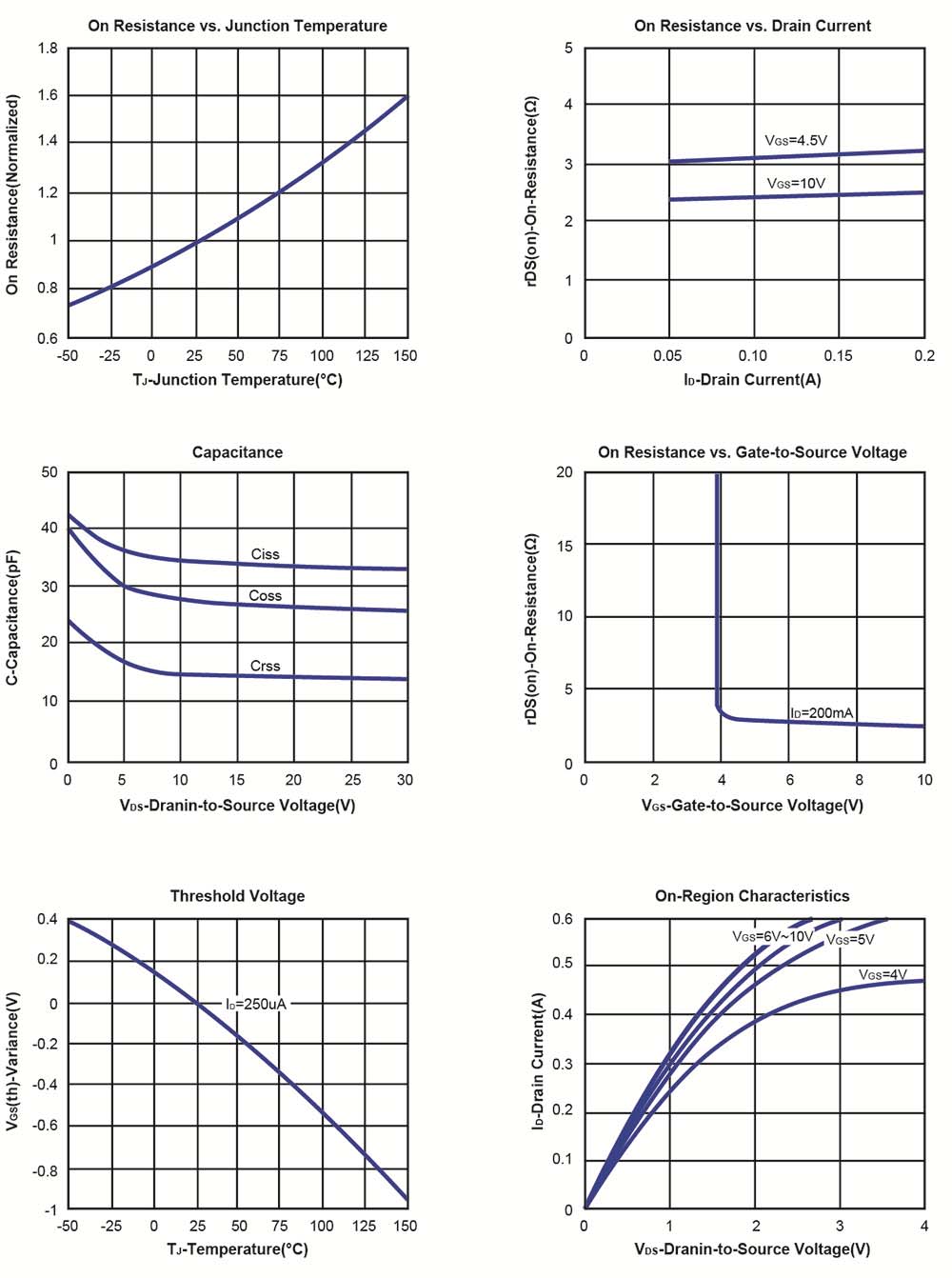

Reverse Transfer Capacitance (Crss@Vds):
13pF@25V
Number:
1 N-channel
Output Capacitance(Coss):
25pF
Input Capacitance(Ciss):
33pF@25V
Pd - Power Dissipation:
160mW
Gate Charge(Qg):
4.7nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
