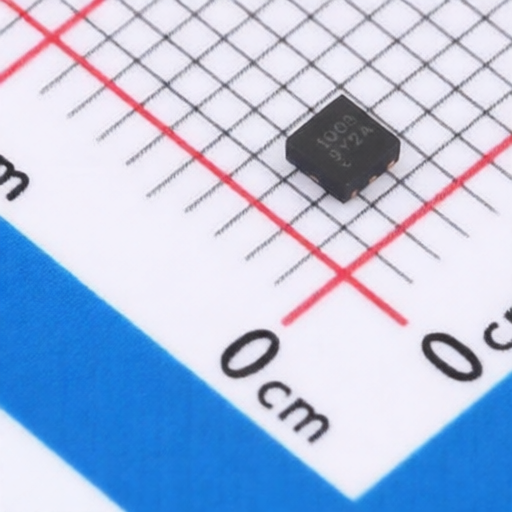

JingYang TPM2030JX
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TPM2030JX
Package:
DFN2X2-6L
Customer #:
Key Attributes:
MOSFET 30V 10A DFN2X2-6L
Description:
30V 10A 2.8W Surface Mount DFN2X2-6L
Datasheet:
JingYang TPM2030JX
Products Specifications
Manufacturer:
Package:
DFN2X2-6L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
10A
Operating Temperature -:
-55℃~+150℃
RDS(on):
21mΩ@10V,8A
Gate Threshold Voltage (Vgs(th)):
-
Reverse Transfer Capacitance (Crss@Vds):
75pF@15V
Input Capacitance(Ciss):
530pF@15V
Pd - Power Dissipation:
2.8W
Gate Charge(Qg):
12nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JingYang
349 Products
Shenzhen Jingyang Electronics Co., Ltd.
(hereafter referred to as "JYELECTRONICS" or "Shenzhen JingYang") was established in 2006 and has specialized in IC design, production, sales, and system integration for many years. The company operates several wholly-owned subsidiaries and holding companies and holds nearly 100 valid patents and other intellectual property rights. It is recognized as a leading "circuit and system protection expert" in the industry. JYELECTRONICS offers a wide range of products, including ESD devices, TVS components, LED display driver chips, MOSFETs, diodes, triodes, power management chips, interface chips, and more. These products find applications in various areas such as computers, televisions, network communications, smart wearables, security monitoring, home appliances, industrial control, new energy vehicles, and power tools. JYELECTRONICS is committed to the business philosophy of "customer first, quality first, and integrity-based." JYELECTRONICS strives
