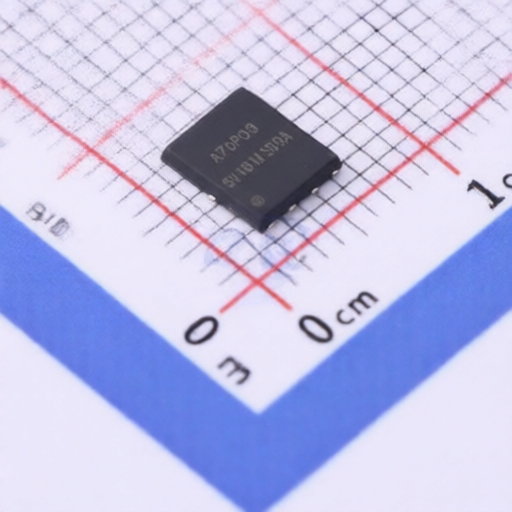

JingYang TPM0730N5X
Manufacturer:
JingYang
Asian Brands
Mfr. Part #:
TPM0730N5X
Package:
PDFN5X6-8L
Customer #:
Key Attributes:
MOSFET P-CH 30V 70A PDFN5X6-8L
Description:
P-Channel 30V 70A 90W Surface Mount PDFN5x6-8L
Datasheet:
JingYang TPM0730N5X
Products Specifications
Manufacturer:
Package:
PDFN5X6-8L
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
70A
Operating Temperature -:
-55℃~+150℃
RDS(on):
7.2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
2.5V
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
140pF
Number:
1 P-Channel
Output Capacitance(Coss):
255pF
Input Capacitance(Ciss):
3.45nF
Pd - Power Dissipation:
90W
Gate Charge(Qg):
60nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
