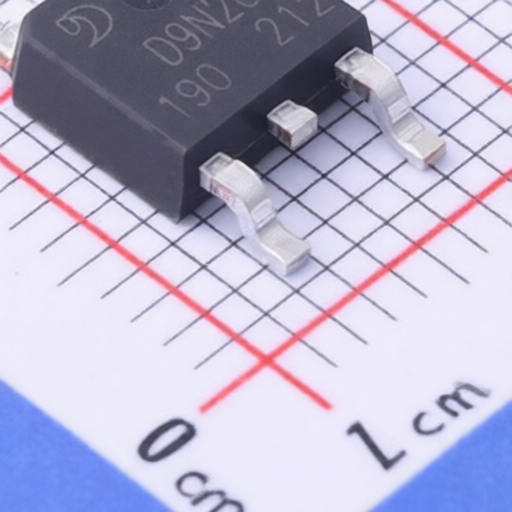

Jingdao Microelectronics D9N20
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
D9N20
Package:
TO-252W
Customer #:
Key Attributes:
MOSFET N-CH 200V 9A TO-252W
Description:
N-Channel 200V 9A 74W Surface Mount TO-252W
Datasheet:
Jingdao Microelectronics D9N20
Products Specifications
Manufacturer:
Package:
TO-252W
Drain to Source Voltage:
200V
Current - Continuous Drain(Id):
9A
RDS(on):
400mΩ@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
2V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
12pF
Output Capacitance(Coss):
90pF
Pd - Power Dissipation:
74W
Input Capacitance(Ciss):
1nF
Gate Charge(Qg):
31nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jingdao Microelectronics
2361 Products
Shangdong Jingdao Microelectronics Co.,Ltd. is primarily engaged in developing and manufacturing semiconductor products. Our industrial park located in Oriental Holy City-Qufu, the hometown of Confucious. There are 122000 square meters in our industrial park with 20000 square meters producing area. We had advanced GPP wafer producing lines and automatic SMD packaging producing linea. We could provide High Coast-effective whole series diodes for customers.
