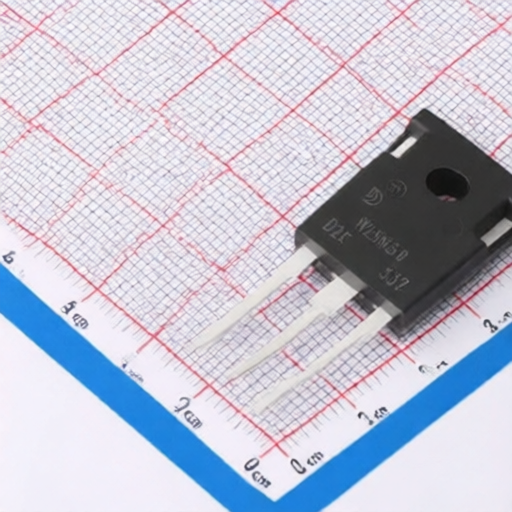

Jingdao Microelectronics W25N50
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
W25N50
Package:
TO-247-3L
Customer #:
Key Attributes:
MOSFET N-CH 500V 25A TO-247-3L
Description:
N-Channel 500V 25A 219W Through Hole TO-247-3L
Datasheet:
Jingdao Microelectronics W25N50
Products Specifications
Manufacturer:
Package:
TO-247-3L
Drain to Source Voltage:
500V
Current - Continuous Drain(Id):
25A
RDS(on):
270mΩ@10V,12.5A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
10.4pF
Output Capacitance(Coss):
220pF
Pd - Power Dissipation:
219W
Input Capacitance(Ciss):
2.66nF@25V
Gate Charge(Qg):
30nC@400V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
