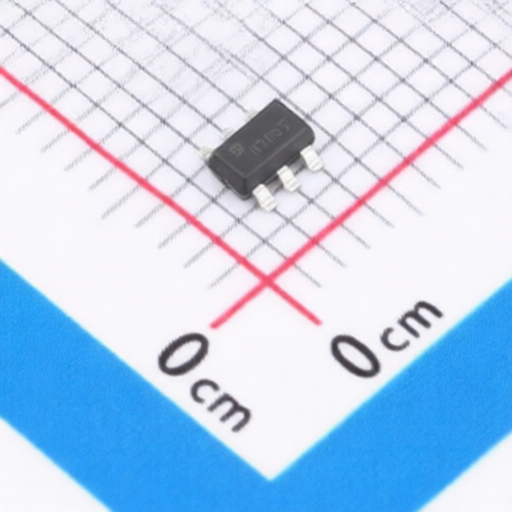

Jingdao Microelectronics NM8205
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
NM8205
Package:
SOT-26
Customer #:
Key Attributes:
MOSFET N-CH ARR 20V 5A SOT-26
Description:
N-Channel Array 20V 5A 1.5W Surface Mount SOT-26
Datasheet:
Jingdao Microelectronics NM8205
Products Specifications
Manufacturer:
Package:
SOT-26
Drain to Source Voltage:
20V
Current - Continuous Drain(Id):
5A
Operating Temperature -:
-50℃~+150℃
RDS(on):
26mΩ@4.5V,4A
Gate Threshold Voltage (Vgs(th)):
450mV
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
125pF@10V
Number:
2 N-Channel
Output Capacitance(Coss):
155pF
Pd - Power Dissipation:
1.5W
Input Capacitance(Ciss):
800pF@10V
Gate Charge(Qg):
11nC
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jingdao Microelectronics
2361 Products
Shangdong Jingdao Microelectronics Co.,Ltd. is primarily engaged in developing and manufacturing semiconductor products. Our industrial park located in Oriental Holy City-Qufu, the hometown of Confucious. There are 122000 square meters in our industrial park with 20000 square meters producing area. We had advanced GPP wafer producing lines and automatic SMD packaging producing linea. We could provide High Coast-effective whole series diodes for customers.
