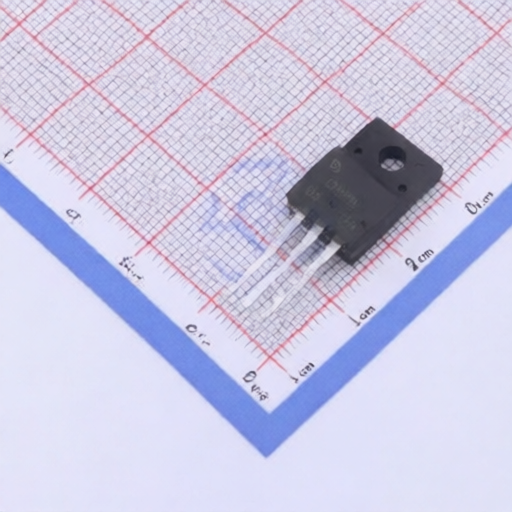

Jingdao Microelectronics F7N70L
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
F7N70L
Package:
TO-220F-3
Customer #:
Key Attributes:
MOSFET N-CH 700V 7A TO-220F-3
Description:
N-Channel 700V 7A 32W Through Hole TO-220F-3
Datasheet:
Jingdao Microelectronics F7N70L
Products Specifications
Manufacturer:
Package:
TO-220F-3
Drain to Source Voltage:
700V
Current - Continuous Drain(Id):
7A
RDS(on):
1.3Ω@10V
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
3.5pF
Output Capacitance(Coss):
27pF
Pd - Power Dissipation:
32W
Input Capacitance(Ciss):
497pF
Gate Charge(Qg):
18nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
