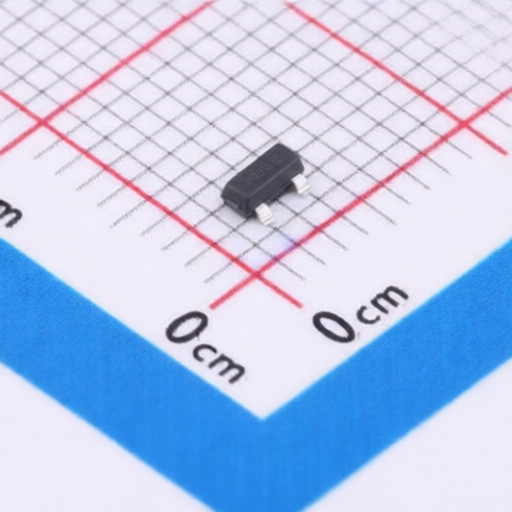

Jingdao Microelectronics PM3401B
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
PM3401B
Package:
SOT-23
Customer #:
Key Attributes:
MOSFET P-CH 30V 4.2A SOT-23
Description:
P-Channel 30V 4.2A 1.2W Surface Mount SOT-23
Datasheet:
Jingdao Microelectronics PM3401B
Products Specifications
Manufacturer:
Package:
SOT-23
Drain to Source Voltage:
30V
Current - Continuous Drain(Id):
4.2A
RDS(on):
59mΩ@10V,4.2A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
600mV
Type:
P-Channel
Reverse Transfer Capacitance (Crss@Vds):
65pF
Output Capacitance(Coss):
105pF
Pd - Power Dissipation:
1.2W
Input Capacitance(Ciss):
880pF@15V
Gate Charge(Qg):
8.5nC@4.5V
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 3000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
