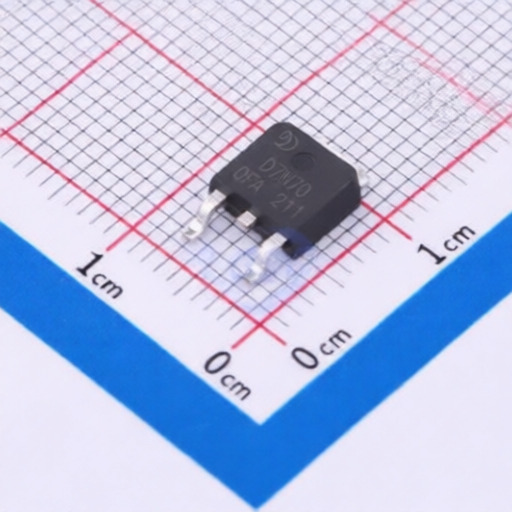

Jingdao Microelectronics D7N70
Manufacturer:
Jingdao Microelectronics
Asian Brands
Mfr. Part #:
D7N70
Package:
TO-252W
Customer #:
Key Attributes:
MOSFET N-CH 700V 7A TO-252W
Description:
N-Channel 700V 7A 54W Surface Mount TO-252W
Datasheet:
Jingdao Microelectronics D7N70
Products Specifications
Manufacturer:
Package:
TO-252W
Drain to Source Voltage:
700V
Current - Continuous Drain(Id):
7A
RDS(on):
1.5Ω@10V,3.5A
Operating Temperature -:
-55℃~+150℃
Gate Threshold Voltage (Vgs(th)):
4V
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
13pF
Output Capacitance(Coss):
103pF
Pd - Power Dissipation:
54W
Input Capacitance(Ciss):
1.08nF@25V
Gate Charge(Qg):
22nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
