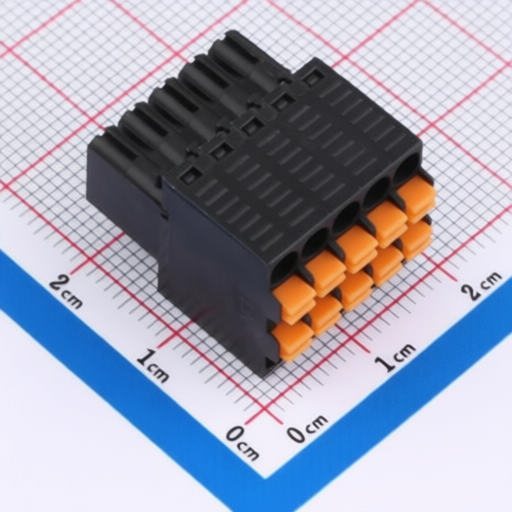

JILN JL15EDGKDH-35005B01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL15EDGKDH-35005B01
Package:
Through Hole,P=3.5mm
Customer #:
Description:
0.2~1.5 8A 16~28 Black 150V -40℃~+105℃ 3.5mm 5 2 2x5P Through Hole,P=3.5mm Headers, Plugs and Sockets RoHS
Datasheet:
JILN JL15EDGKDH-35005B01
Products Specifications
Manufacturer:
Package:
Through Hole,P=3.5mm
Wire Gauge - mm2:
0.2~1.5
Current Rating:
8A
Wire Gauge - AWG:
16~28
Number of Pins:
10P
Color:
Black
Outlet Direction (Vertical Basis):
Top Entry
Connection Type:
Spring Connection
Voltage Rating (Max):
150V
Operating Temperature:
-40℃~+105℃
Pitch:
3.5mm
Number of PINs Per Row:
5
Number of Rows:
2
Pin Structure:
2x5P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 100 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
