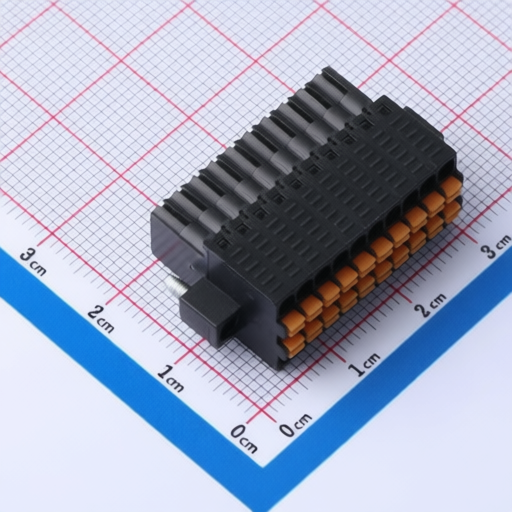

JILN JL15EDGKDHM-25410B01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL15EDGKDHM-25410B01
Package:
P=2.54mm
Customer #:
Key Attributes:
TERM BLOCK PLUG 20POS 2.54mm
Description:
20 Position Plug 2.54mm Pitch
Datasheet:
JILN JL15EDGKDHM-25410B01
Products Specifications
Manufacturer:
Package:
P=2.54mm
Wire Gauge - mm2:
0.2~0.5
Current Rating:
5A
Number of Pins:
20P
Wire Gauge - AWG:
20~30
Color:
Black
Voltage Rating (Max):
150V
Operating Temperature:
-40℃~+105℃
Pitch:
2.54mm
Connector Type:
Plug
Number of PINs Per Row:
10
Number of Rows:
2
Termination Style:
Screw
Pin Structure:
2x10P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 200 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
JILN
1638 Products
Shenzhen Jinling Electronics Co., Ltd.
(hereinafter referred to as "JiLN") was established in 2004. It is a national high-tech enterprise in China. JiLN has a well-trained product R&D team and management team, and has more than 280 patents for independent innovation, R&D and production of products. The company's main products include pin and female headers, terminal blocks, cable assemblies, wiring harnesses, power sockets, SATA, SCSI, DIN41612, PLCC, IDC, sockets, card holders and other products, which are widely used in industrial control, new energy, photovoltaic energy storage, communications, security, medical and many other fields. JiLN has passed IATF16949 and ISO9001-2015 quality management system certification and ISO14001-2015 environmental management system certification. It adheres to the leading technology and brand strategy, and strives to provide customers with high-quality, low-cost and reliable products.
