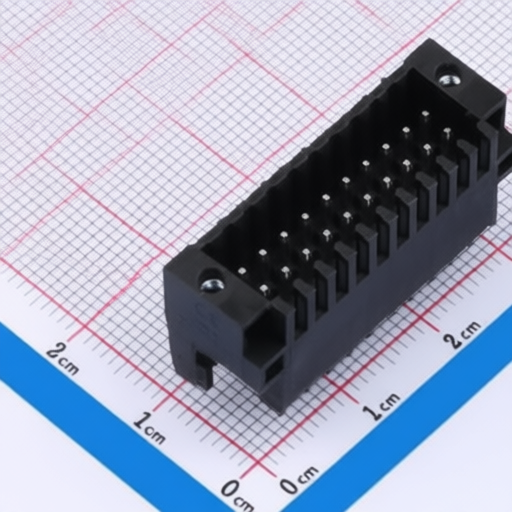

JILN JL15EDGVHDM-25410B01
Manufacturer:
JILN
Asian Brands
Mfr. Part #:
JL15EDGVHDM-25410B01
Package:
Through Hole,P=2.54mm
Customer #:
Key Attributes:
TERM BLOCK HDR 20POS 2.54mm
Description:
20 Position Board Side/Socket - Closed 2.54mm Pitch Straight Pin
Datasheet:
JILN JL15EDGVHDM-25410B01
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.54mm
Current Rating:
8A
Number of Pins:
20P
Color:
Black
Voltage Rating (Max):
150V
Operating Temperature:
-40℃~+105℃
Pitch:
2.54mm
Connector Type:
Board Side/Socket - Closed
Number of PINs Per Row:
10
Number of Rows:
2
Termination Style:
Screw
Mounting Type:
Straight Pin
Pin Structure:
2x10P
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
