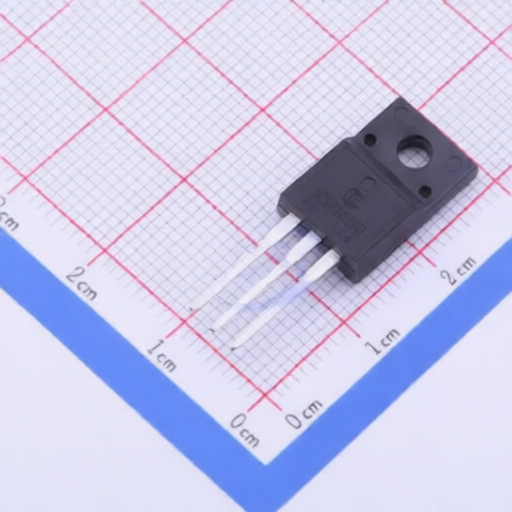

Jilin Sino-Microelectronics JCS2N65FB-220MF
Manufacturer:
Jilin Sino-Microelectronics
Asian Brands
Mfr. Part #:
JCS2N65FB-220MF
Package:
TO-220MF
Customer #:
Key Attributes:
N-channel, Current:2.0A, Voltage:650V
Description:
650V 2A 5Ω@10V 4V@250uA 360mW TO-220MF Single FETs, MOSFETs RoHS
Datasheet:
Jilin Sino-Microelectronics JCS2N65FB-220MF
Products Specifications
Manufacturer:
Package:
TO-220MF
Drain to Source Voltage:
650V
Current - Continuous Drain(Id):
2A
Operating Temperature -:
-55℃~+150℃
RDS(on):
5Ω@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Reverse Transfer Capacitance (Crss@Vds):
7pF
Number:
-
Output Capacitance(Coss):
80pF
Input Capacitance(Ciss):
560pF
Pd - Power Dissipation:
360mW
Gate Charge(Qg):
10nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
