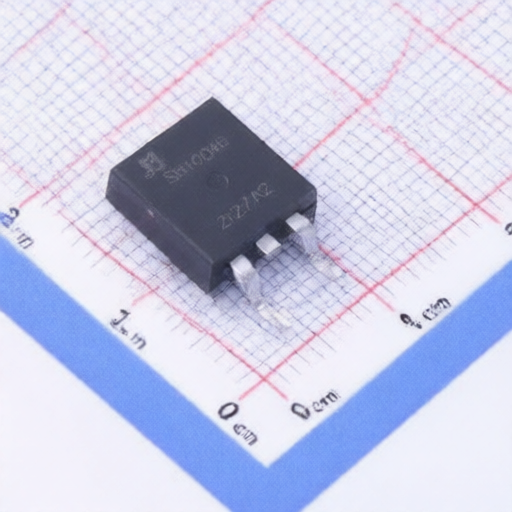

Jiangsu JieJie Microelectronics JMSH1004BE-13
Manufacturer:
Jiangsu JieJie Microelectronics
Asian Brands
Mfr. Part #:
JMSH1004BE-13
Package:
TO-263-2
Customer #:
Key Attributes:
N-Channel, Current: 139A, Voltage: 100V
Description:
100V 139A 4.2mΩ@10V 4V@250uA 1 N-channel 156W TO-263-2 Single FETs, MOSFETs RoHS
Products Specifications
Manufacturer:
Package:
TO-263-2
Drain to Source Voltage:
100V
Current - Continuous Drain(Id):
139A
Operating Temperature -:
-55℃~+150℃
RDS(on):
4.2mΩ@10V
Gate Threshold Voltage (Vgs(th)):
4V@250uA
Type:
N-Channel
Reverse Transfer Capacitance (Crss@Vds):
13pF
Number:
1 N-channel
Output Capacitance(Coss):
905pF
Input Capacitance(Ciss):
3.433nF
Pd - Power Dissipation:
156W
Gate Charge(Qg):
57nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jiangsu JieJie Microelectronics
258 Products
Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
