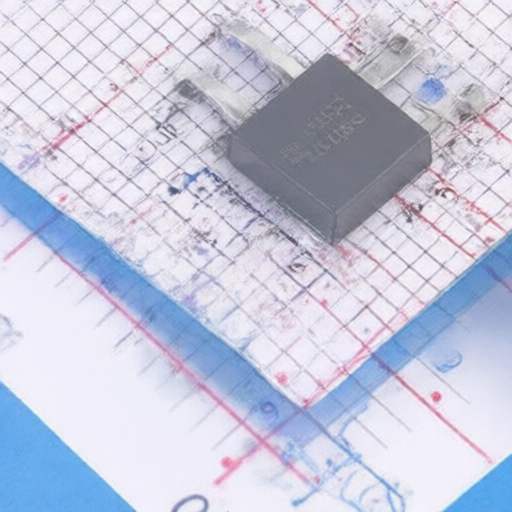

Jiangsu JieJie Microelectronics JMSH1507AE-13

Jiangsu JieJie Microelectronics JMSH1507AE-13

Name: Jiangsu JieJie Microelectronics JMSH1507AE-13
Brand: Jiangsu JieJie Microelectronics

Manufacturer: Jiangsu JieJie Microelectronics Asian Brands

Mfr. Part #: JMSH1507AE-13

Package: TO-263

Customer #:

Key Attributes: MOSFET N-CH 150V 132A TO-263

Description: N-Channel 150V 132A 288W Surface Mount TO-263

Datasheet: Jiangsu JieJie Microelectronics JMSH1507AE-13

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

Jiangsu JieJie Microelectronics

Package:

TO-263

Drain to Source Voltage:

150V

Current - Continuous Drain(Id):

132A

RDS(on):

6.5mΩ@10V

Operating Temperature -:

-55℃~+175℃

Gate Threshold Voltage (Vgs(th)):

4.5V@250uA

Type:

N-Channel

Reverse Transfer Capacitance (Crss@Vds):

7.2pF@75V

Number:

1 N-channel

Pd - Power Dissipation:

288W

Input Capacitance(Ciss):

4.32nF@75V

Gate Charge(Qg):

68nC@10V

Additional Information

Type	Details
Minimum	1
Multiple	1
Standard Packaging	800
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Jiangsu JieJie Microelectronics JMSH1507AE-13

Get Best Price

Inquiry

Negotiate

Payment

Shipping

Jiangsu JieJie Microelectronics

258 Products

Asian Brand

Founded in 1995,Jiangsu JieJie Microelectronics Co., Ltd. is a high-tech enterprise mainly engaged in designing,manufacturing and marketing semiconductor discrete components and power electronic devices.We are the first company to produce “square” type SCR and TRIAC and have the most extensive SCR and TRIAC production line in China.
