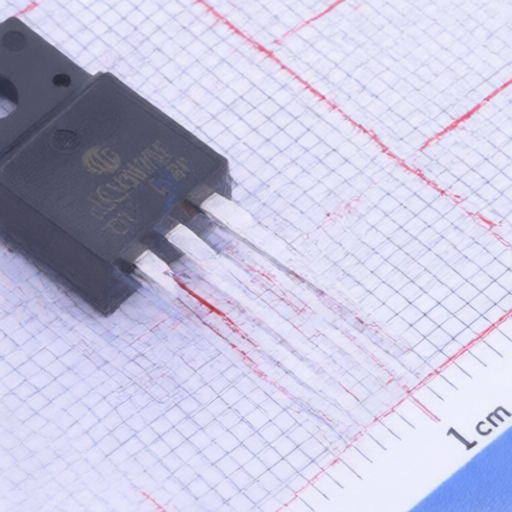

Jilin Sino-Microelectronics JCS15N70FC
Manufacturer:
Jilin Sino-Microelectronics
Asian Brands
Mfr. Part #:
JCS15N70FC
Package:
TO-220MF
Customer #:
Key Attributes:
MOSFET 700V 15A TO-220MF
Description:
700V 15A 568W Through Hole TO-220MF
Datasheet:
Jilin Sino-Microelectronics JCS15N70FC
Products Specifications
Manufacturer:
Package:
TO-220MF
Drain to Source Voltage:
700V
Current - Continuous Drain(Id):
15A
Operating Temperature -:
-55℃~+150℃
RDS(on):
550mΩ@10V
Gate Threshold Voltage (Vgs(th)):
5V@250uA
Reverse Transfer Capacitance (Crss@Vds):
14.1pF
Number:
-
Output Capacitance(Coss):
304pF
Input Capacitance(Ciss):
2.84nF
Pd - Power Dissipation:
568W
Gate Charge(Qg):
51.3nC@10V
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541290000 |
| USHTS | 8541290095 |
| TARIC | 8541290000 |
| CAHTS | 8541290000 |
| BRHTS | 85412910 |
| INHTS | 85412900 |
| MXHTS | 8541.29.99 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Jilin Sino-Microelectronics
236 Products
Jilin Sino-Microelectronics Co., Ltd. (JSMC), a hi-tech enterprise, is mainly engaged in designing, manufacturing and marketing of semiconductor devices. Benefited from decades of innovation and upgrade, JSMC ranks as one of the top 5 semiconductor device companies inChinaand is certified as postdoctoral workstation and innovative enterprise by both Ministry of Science and Technology and Chinese Academy of Sciences.
