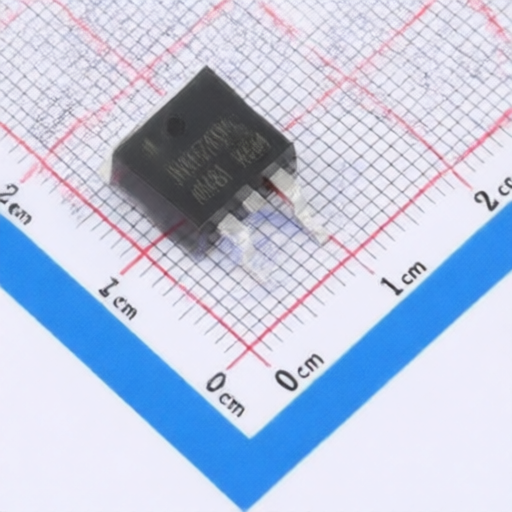

JIAENSEMI JNG15T65KS1
Manufacturer:
JIAENSEMI
Asian Brands
Mfr. Part #:
JNG15T65KS1
Package:
TO-263
Customer #:
Description:
100W 650V TO-263 Single IGBTs RoHS
Datasheet:
JIAENSEMI JNG15T65KS1
Products Specifications
Manufacturer:
Package:
TO-263
Pd - Power Dissipation:
100W
Td(off):
94ns
Td(on):
16ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
7pF
Input Capacitance(Cies):
629pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Operating Temperature:
-55℃~+150℃
Pulsed Current- Forward(Ifm):
45A
Output Capacitance(Coes):
45pF
Reverse Recovery Time(trr):
120ns
Switching Energy(Eoff):
320uJ
Turn-On Energy (Eon):
310uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 800 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
