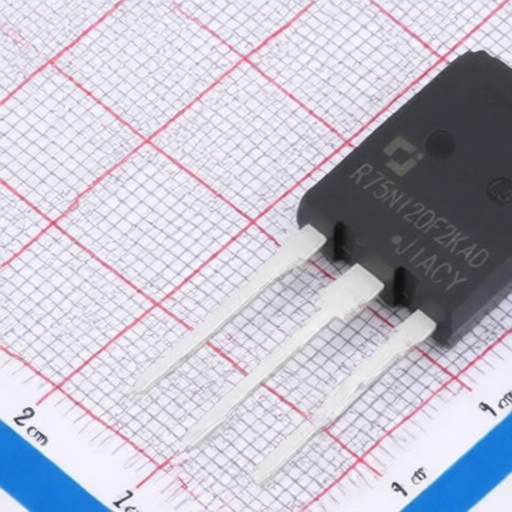

JSCJ CGR75N120F2KAD
Manufacturer:
JSCJ
Asian Brands
Mfr. Part #:
CGR75N120F2KAD
Package:
TO-247-3L
Customer #:
Description:
395W 1.2kV FS (Field Stop) TO-247-3L Single IGBTs RoHS
Datasheet:
JSCJ CGR75N120F2KAD
Products Specifications
Manufacturer:
Package:
TO-247-3L
Td(off):
245ns
Pd - Power Dissipation:
395W
Td(on):
64ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
60pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@250uA
Operating Temperature:
-40℃~+175℃
Gate Charge(Qg):
348nC@15V
Switching Energy(Eoff):
2.6mJ
Turn-On Energy (Eon):
6mJ
Input Capacitance(Cies):
7.239nF
Pulsed Current- Forward(Ifm):
225A
Output Capacitance(Coes):
269pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
