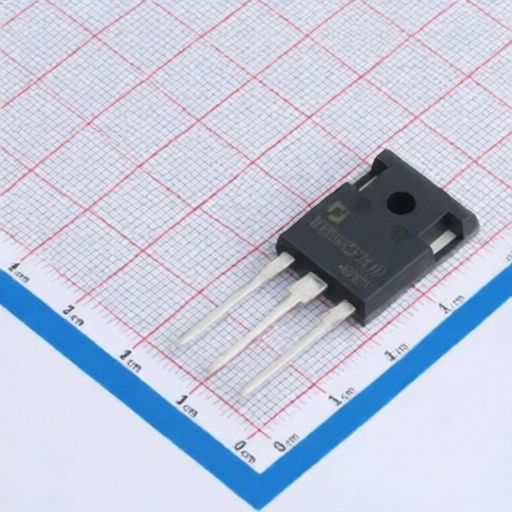

JSCJ CGWT80N65F2KAD
Manufacturer:
JSCJ
Asian Brands
Mfr. Part #:
CGWT80N65F2KAD
Package:
TO-247
Customer #:
Description:
390W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
JSCJ CGWT80N65F2KAD
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
390W
Td(off):
94ns
Td(on):
26ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
30pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4V@1mA
Operating Temperature:
-55℃~+175℃
Gate Charge(Qg):
108.8nC@15V
Reverse Recovery Time(trr):
90ns
Switching Energy(Eoff):
870uJ
Turn-On Energy (Eon):
2.69mJ
Pulsed Current- Forward(Ifm):
240A
Output Capacitance(Coes):
256pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
