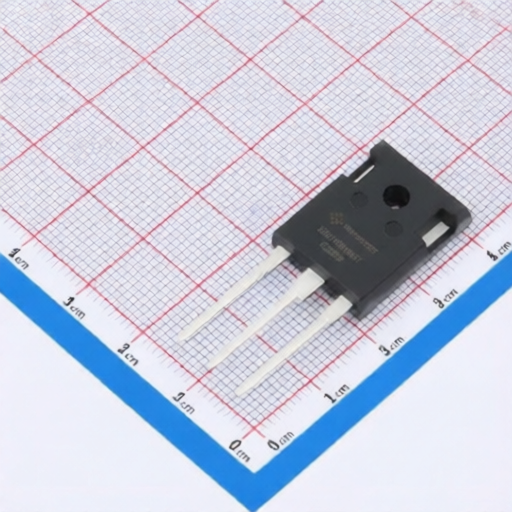

HXY MOSFET BIDW50N65T-HXY
Manufacturer:
HXY MOSFET
Asian Brands
Mfr. Part #:
BIDW50N65T-HXY
Package:
TO-247
Customer #:
Description:
300W 650V FS (Field Stop) TO-247 Single IGBTs RoHS
Datasheet:
HXY MOSFET BIDW50N65T-HXY
Products Specifications
Manufacturer:
Package:
TO-247
Td(off):
122ns
Pd - Power Dissipation:
300W
Td(on):
24ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
92pF
IGBT Type:
FS (Field Stop)
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
4.5V@1mA
Gate Charge(Qg):
179nC@15V
Reverse Recovery Time(trr):
98ns
Switching Energy(Eoff):
1.14mJ
Turn-On Energy (Eon):
1.38mJ
Input Capacitance(Cies):
3.363nF
Pulsed Current- Forward(Ifm):
200A
Output Capacitance(Coes):
206pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
