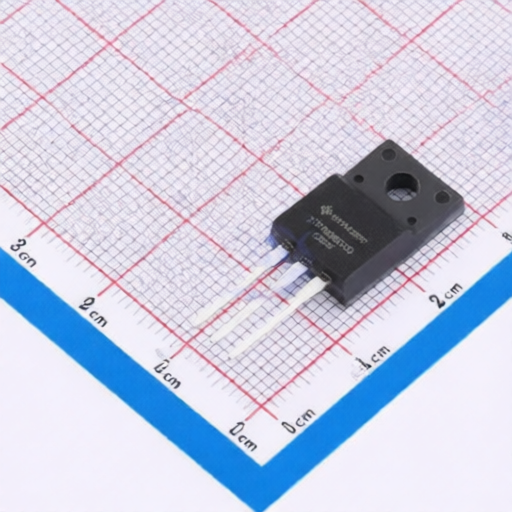

HXY MOSFET IXYP15N65C3D1M-HXY
Manufacturer:
HXY MOSFET
Asian Brands
Mfr. Part #:
IXYP15N65C3D1M-HXY
Package:
TO-220F
Customer #:
Description:
250W 650V TO-220F Single IGBTs RoHS
Datasheet:
HXY MOSFET IXYP15N65C3D1M-HXY
Products Specifications
Manufacturer:
Package:
TO-220F
Td(off):
156ns
Pd - Power Dissipation:
250W
Td(on):
46ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Reverse Transfer Capacitance (Cres):
11pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
6.4V@400uA
Gate Charge(Qg):
51nC
Operating Temperature:
-40℃~+175℃
Pulsed Current- Forward(Ifm):
150A
Output Capacitance(Coes):
34pF
Reverse Recovery Time(trr):
159ns
Switching Energy(Eoff):
190uJ
Turn-On Energy (Eon):
400uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 50 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
