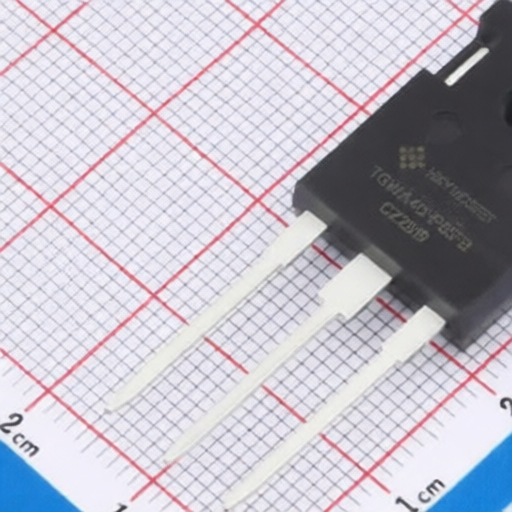

HXY MOSFET STGWA40HP65FB-HXY
Manufacturer:
HXY MOSFET
Asian Brands
Mfr. Part #:
STGWA40HP65FB-HXY
Package:
TO-247
Customer #:
Key Attributes:
IGBT 650V 70A TO-247
Description:
IGBT 650V 70A 250W Through Hole TO-247
Datasheet:
HXY MOSFET STGWA40HP65FB-HXY
Products Specifications
Manufacturer:
Package:
TO-247
Pd - Power Dissipation:
250W
Td(off):
136ns
Td(on):
26ns
Collector-Emitter Breakdown Voltage (Vces):
650V
Input Capacitance(Cies):
1.52nF@25V
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
3.2V@250uA
Gate Charge(Qg):
57nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
56ns
Switching Energy(Eoff):
430uJ
Turn-On Energy (Eon):
900uJ
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
