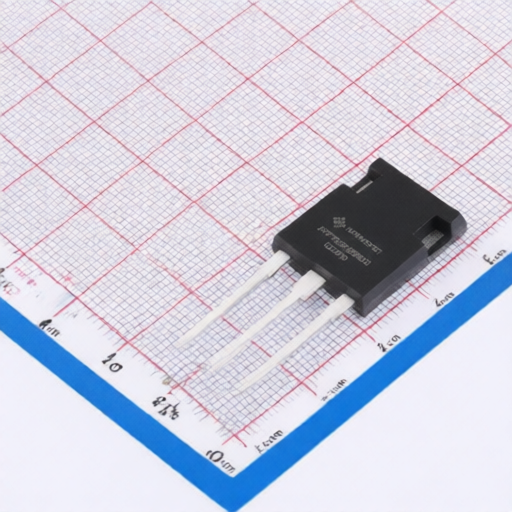

HXY MOSFET APT75GP120B2G-HXY
Manufacturer:
HXY MOSFET
Asian Brands
Mfr. Part #:
APT75GP120B2G-HXY
Package:
TO-247P
Customer #:
Description:
930W 1.2kV TO-247P Single IGBTs RoHS
Datasheet:
HXY MOSFET APT75GP120B2G-HXY
Products Specifications
Manufacturer:
Package:
TO-247P
Td(off):
185ns
Pd - Power Dissipation:
930W
Td(on):
46ns
Collector-Emitter Breakdown Voltage (Vces):
1.2kV
Reverse Transfer Capacitance (Cres):
61pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5.1V@0.25mA
Gate Charge(Qg):
321nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
400ns
Switching Energy(Eoff):
2.75mJ
Turn-On Energy (Eon):
5.69mJ
Input Capacitance(Cies):
9.812nF
Pulsed Current- Forward(Ifm):
300A
Output Capacitance(Coes):
312pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 30 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
