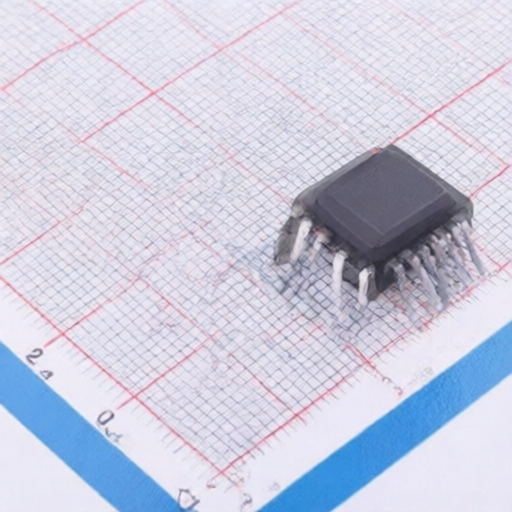

Huixin H15T60
Manufacturer:
Huixin
Asian Brands
Mfr. Part #:
H15T60
Package:
TO-220F
Customer #:
Description:
40W 600V TO-220F Single IGBTs RoHS
Datasheet:
Huixin H15T60
Products Specifications
Manufacturer:
Package:
TO-220F
Td(off):
124ns
Pd - Power Dissipation:
40W
Td(on):
16ns
Collector-Emitter Breakdown Voltage (Vces):
600V
Reverse Transfer Capacitance (Cres):
30pF
Gate-Emitter Threshold Voltage (Vge(th)@Ic):
5V@1mA
Gate Charge(Qg):
63nC@15V
Operating Temperature:
-40℃~+175℃
Reverse Recovery Time(trr):
170ns
Switching Energy(Eoff):
120uJ
Turn-On Energy (Eon):
250uJ
Input Capacitance(Cies):
1.635nF
Pulsed Current- Forward(Ifm):
45A
Output Capacitance(Coes):
50pF
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8541600000 |
| USHTS | 8541600080 |
| TARIC | 8541600000 |
| CAHTS | 8541600010 |
| BRHTS | 85416010 |
| INHTS | 85416000 |
| MXHTS | 8541.60.01 |
