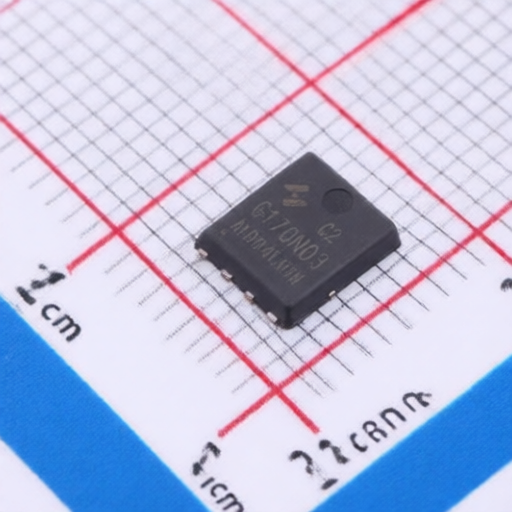

HUAYI HYG170N03LR1C2

HUAYI HYG170N03LR1C2

Name: HUAYI HYG170N03LR1C2
Brand: HUAYI

Manufacturer: HUAYI Asian Brands

Mfr. Part #: HYG170N03LR1C2

Package: PDFN-8L(5x6)

Customer #:

Description: 30V 24A 21.5mΩ@4.5V,4A 1.9V 1 N-channel 20W PDFN-8L(5x6) Single FETs, MOSFETs RoHS

Datasheet: HUAYI HYG170N03LR1C2

Products Specifications

Category:

Discrete Semiconductors/FETs, MOSFETs/Single FETs, MOSFETs

Manufacturer:

HUAYI

Package:

PDFN-8L(5x6)

Drain to Source Voltage:

30V

Current - Continuous Drain(Id):

24A

Operating Temperature -:

-55℃~+175℃

RDS(on):

21.5mΩ@4.5V,4A

Gate Threshold Voltage (Vgs(th)):

1.9V

Reverse Transfer Capacitance (Crss@Vds):

38pF

Number:

1 N-channel

Pd - Power Dissipation:

20W

Input Capacitance(Ciss):

412pF

Gate Charge(Qg):

9.5nC@10V

Additional Information

Type	Details
Minimum	5
Multiple	5
Standard Packaging	5000
Sales Unit	Piece

Compliance & Export Codes

Type	Details
RoHS
ECCN	-
CNHTS	8541290000
USHTS	8541290095
TARIC	8541290000
CAHTS	8541290000
BRHTS	85412910
INHTS	85412900
MXHTS	8541.29.99

About Product

Get Best Price

Inquiry

Negotiate

Payment

Shipping

HUAYI

323 Products

Asian Brand

HUAYI, also known as Hymexa, was established in 2017 and is a high-tech enterprise under the Huatian Electronics Group, focusing on the research, design, packaging, testing, and sales of semiconductor power devices. Its main product lines include MOSFET, Trench MOSFET, and SGT MOSFET.
