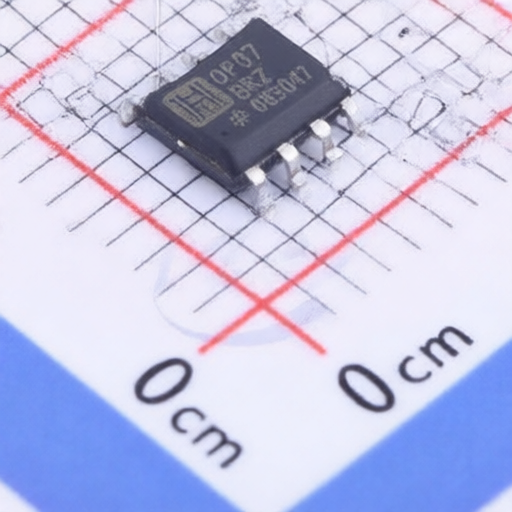

HTCSEMI OP07BRZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
OP07BRZ
Package:
SOP-8
Customer #:
Key Attributes:
Very low offset single bipolar operational amplifier
Description:
75uV 1.8nA 170V/ms 120dB -3V~22V 500kHz 1 SOP-8 Amplifiers RoHS
Datasheet:
HTCSEMI OP07BRZ
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
75uV
Input offset current drift(Ios TC):
15pA/℃
Ib - Input Bias Current:
1.8nA
Slew Rate:
170V/ms
Quiescent Current(Iq):
2.7mA
Common Mode Rejection Ratio(CMRR):
120dB
Output Current:
-
Operating Temperature:
0℃~+105℃
Voltage - Supply:
-3V~22V
Gain Bandwidth Product:
500kHz
Input Offset Voltage Drift(Vos TC):
1.8uV/℃
Maximum Power Supply Range (Vdd-Vss):
44V
Number of Channels:
1
Rail To Rail:
-
Input Offset Current(Ios):
5nA
Noise density(eN):
10nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 5 |
| Multiple | 5 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
