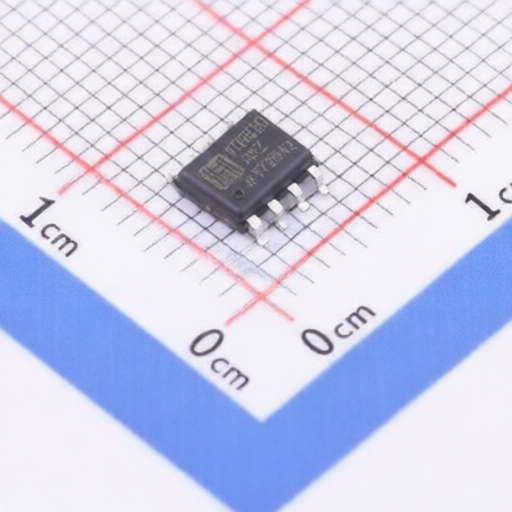

HTCSEMI HT8620ARZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT8620ARZ
Package:
SOP-8
Customer #:
Key Attributes:
Low Power Instrumentation Amplifier
Description:
50uV 500pA 0.75V/us 110dB 120kHz SOP-8 Amplifiers RoHS
Datasheet:
HTCSEMI HT8620ARZ
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
50uV
Settling time:
15us
Ib - Input Bias Current:
500pA
Slew Rate:
0.75V/us
Quiescent Current(Iq):
900uA
Common Mode Rejection Ratio(CMRR):
110dB
Operating Temperature:
-40℃~+85℃
Output Current:
18mA
Gain Bandwidth Product:
120kHz
Voltage - Supply:
-18V~-2.3V;2.3V~18V
Input Offset Voltage Drift(Vos TC):
600nV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Input Offset Current Drift (Ios TC):
1.5pA/℃
Input Offset Current(Ios):
300pA
Noise density(eN):
9nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
