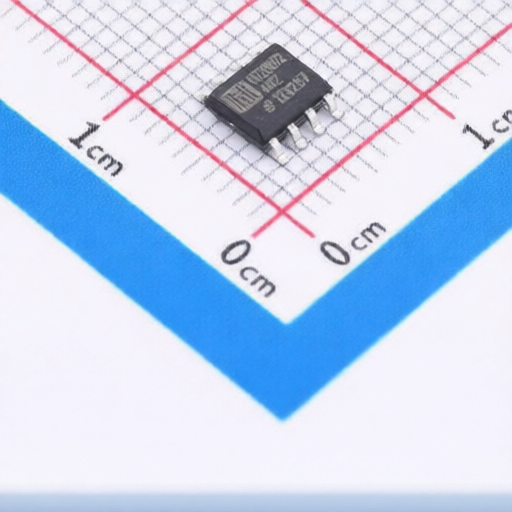

HTCSEMI HT20072ARZ
Manufacturer:
HTCSEMI
Asian Brands
Mfr. Part #:
HT20072ARZ
Package:
SOP-8
Customer #:
Key Attributes:
Operational Amplifier, Rail-to-Rail Output, 3 MHz BW
Description:
4mV 2pA 2.8V/us 125dB 3MHz 2 Rail-to-Rail Output SOP-8 Amplifiers RoHS
Datasheet:
HTCSEMI HT20072ARZ
Products Specifications
Manufacturer:
Package:
SOP-8
Vos - Input Offset Voltage:
4mV
Input offset current drift(Ios TC):
-
Ib - Input Bias Current:
2pA
Slew Rate:
2.8V/us
Quiescent Current(Iq):
405uA
Common Mode Rejection Ratio(CMRR):
125dB
Output Current:
50mA
Operating Temperature:
-40℃~+125℃
Voltage - Supply:
2.7V~36V;-18V~-1.35V;1.35V~18V
Gain Bandwidth Product:
3MHz
Input Offset Voltage Drift(Vos TC):
2uV/℃
Maximum Power Supply Range (Vdd-Vss):
36V
Number of Channels:
2
Rail To Rail:
Rail-to-Rail Output
Input Offset Current(Ios):
75pA
Noise density(eN):
30nV/√Hz@1kHz
Additional Information
| Type | Details |
|---|---|
| Minimum | 1 |
| Multiple | 1 |
| Standard Packaging | 2500 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8542339000 |
| USHTS | 8542330001 |
| TARIC | 8542339000 |
| CAHTS | 8542330000 |
| BRHTS | 85423390 |
| INHTS | 85423300 |
| MXHTS | 8542.33.99 |
