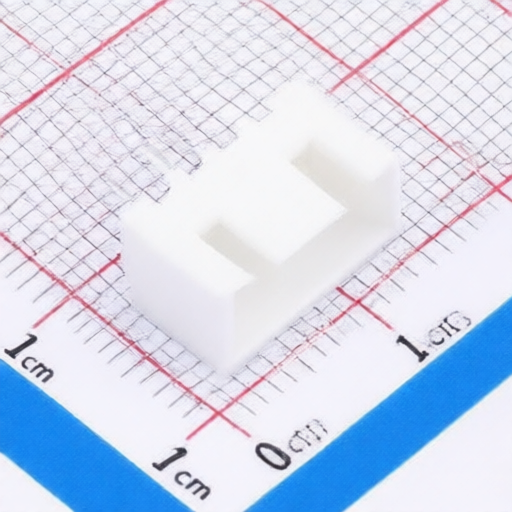

Hong Cheng HC-XHB-4A-TW
Manufacturer:
Hong Cheng
Mfr. Part #:
HC-XHB-4A-TW
Package:
Through Hole,P=2.5mm
Customer #:
Description:
Connector Header 4 position 2.5mm Pitch 3A Through Hole -25℃~+85℃
Datasheet:
Hong Cheng HC-XHB-4A-TW
Products Specifications
Manufacturer:
Package:
Through Hole,P=2.5mm
Y-Width of Bottom Edge on Board:
5.8mm
Reference Series:
XHB
Pins Structure:
1x4P
Contact Plating:
Tin
Contact Material:
Copper;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
-
Pitch:
2.5mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
4
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
12.5mm
Row Spacing:
-
Z-Height of the Board:
7mm
Mounting Type:
Through Hole
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
About Product
Get Best Price
Inquiry
Negotiate
Payment
Shipping
Hong Cheng
1228 Products
Shenzhen Hongcheng Electronics Co., Ltd.
(hereinafter referred to as "Hong Cheng") is a technology-based company integrating R&D, production and sales. The company's main products are 0.8/1.0/1.25/1.5/2.0/2.54/3.96 pitch pin headers, USB sockets, HDMI, network sockets, headphone sockets, VGA sockets, lamp holders and other products, which are widely used in smart home, automobile, consumer electronics and other fields. HongCheng has independent product R&D and design capabilities and mold manufacturing and processing capabilities. It can design and produce various complex plastic products and precision molding molds according to customer requirements. At the same time, HongCheng has a complete quality inspection system to ensure that customers receive assured and satisfactory products.
