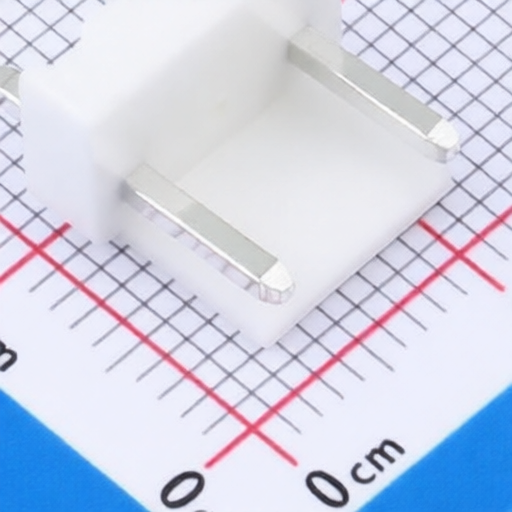

Hong Cheng HC-VH7.92-2A-TW
Manufacturer:
Hong Cheng
Asian Brands
Mfr. Part #:
HC-VH7.92-2A-TW
Package:
Through Hole,P=7.92mm
Customer #:
Key Attributes:
CONN HEADER TH 2POS 7.92mm
Description:
Connector Header 2 position 7.92mm Pitch 7A Through Hole -25℃~+85℃
Datasheet:
Hong Cheng HC-VH7.92-2A-TW
Products Specifications
Manufacturer:
Package:
Through Hole,P=7.92mm
Y-Width of Bottom Edge on Board:
8.1mm
Pins Structure:
1x3P (Missing 1P)
Reference Series:
VH
Contact Plating:
Tin
Contact Material:
Copper;PA66
Operating Temperature:
-25℃~+85℃
Flame Retardant Rating:
-
Supplementary Features:
Missing Pin
Pitch:
7.92mm
Voltage Rating (Max):
250V
Number of PINs Per Row:
3
Number of Rows:
1
X-Length of Bottom Edge on Board (Spacing Line):
11.88mm
Row Spacing:
-
Z-Height of the Board:
10.8mm
Mounting Type:
Through Hole
Additional Information
| Type | Details |
|---|---|
| Minimum | 20 |
| Multiple | 20 |
| Standard Packaging | 1000 |
| Sales Unit | Piece |
Compliance & Export Codes
| Type | Details |
|---|---|
| RoHS | |
| ECCN | - |
| CNHTS | 8536901100 |
| USHTS | 8536908585 |
| TARIC | 8536901000 |
| CAHTS | 8536900090 |
| BRHTS | 85369010 |
| INHTS | 85369010 |
| MXHTS | 8536.90.11 |
